DC-3 SWTPC Floppy Disk Controller

 HOME   Product Summary     Price List Hardware

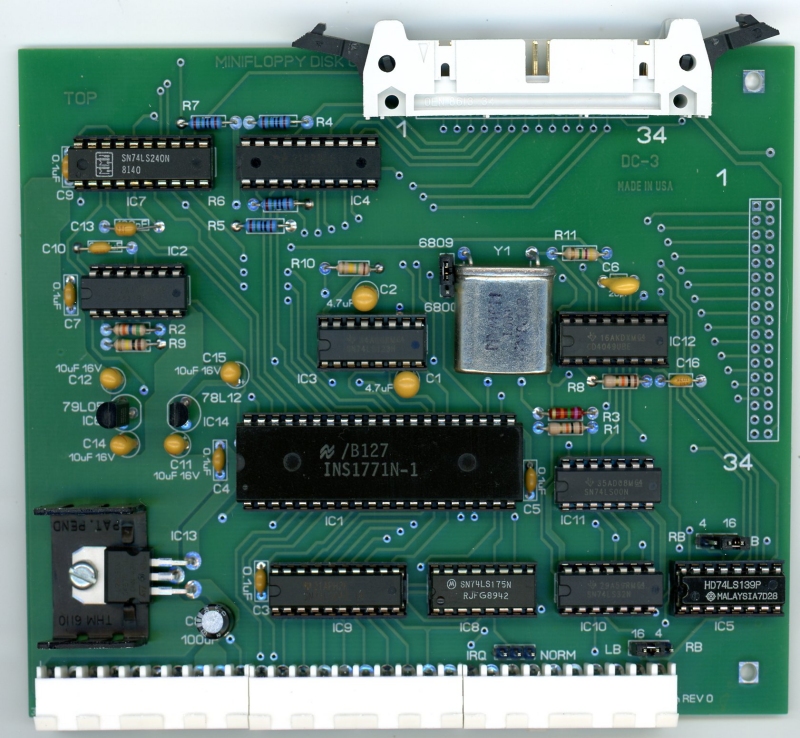

DC-3 Reproduction

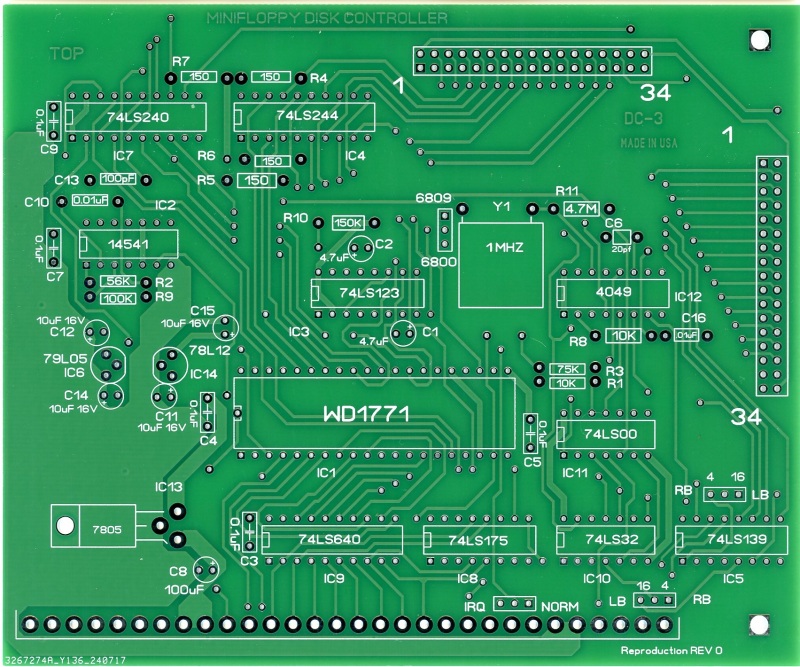

Reproduction DC-3 Bare Board

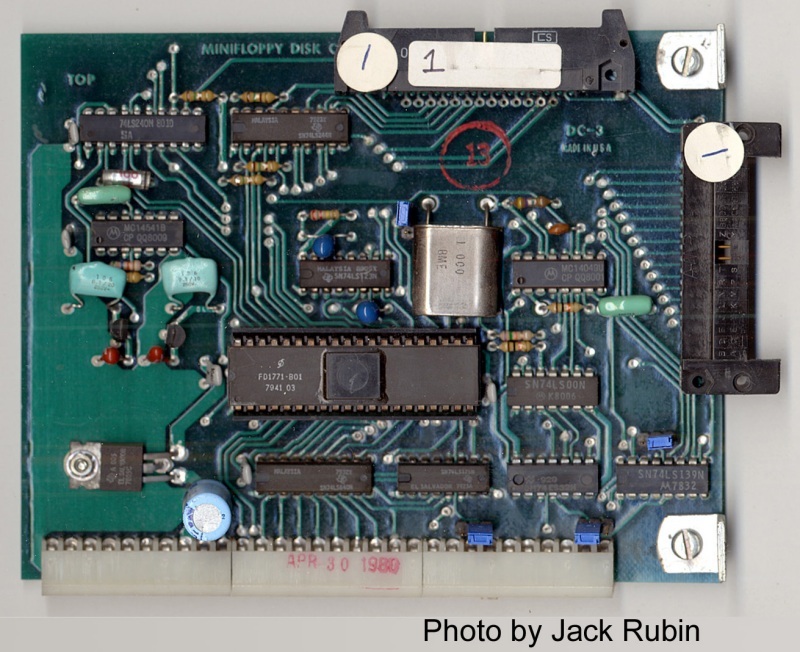

This is a vintage SWTPC DC-3 board.

The reproduction was created from the SWTPC RED/Blue line drawing and a scan of the top and bottom layer.

The DC-3 controller is similar to the DC-2.  Support for double sided drives was added.  Support for double density drives was added when the DC-4 was released.

The main reason for buying a 1771 based controller is for support of very old operating systems such as FDOS.  Some of the older operating systems were not entirely compatible with the newer series of WD floppy controller chips.

The board has been tested in a SWTPC 6800 and 6809 system and will boot FLEX2 and FLEX 9.

Product Summary

• Used in SWTPC 6800 or 6809 computer systems
• Works with double sided drives
• Single Density Only
• For 1MHZ Systems, does not work in 2MHZ systems
• WD1771 Controller
• SS-30 size card

Downloads

Click Here to download DC-3 Parts List     Sorry only the parts list is available

Back to Top

If you are interested in these products email sales@peripheraltech.com with your address and we will respond with purchasing information
