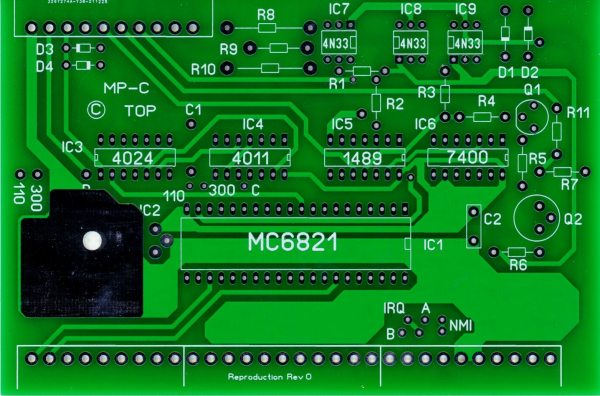

New Reproduction of SWTPC MP-C Serial Interface for SWTPC 6800

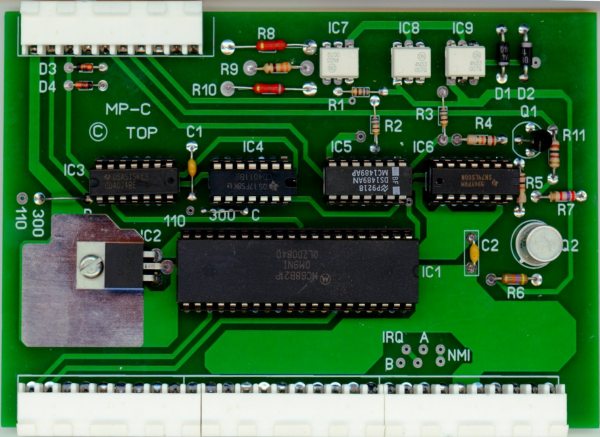

For comparison here is an original SWTPC MP-C board.

Differences between the Original and Reproduction

• Board is solder masked both sides.
• Board is silk-screened.
• The board has "Reproduction" silk-screened on the top side along the bottom edge of the board.

The MP-C was only used with the SWTPC 6800 and was never used with the 6809. This MP-C will work with a 2 MHZ 6800 processor as long as the 6821 is a "B" grade part.

Baud rates are limited to 110 or 300 baud, since RS232 terminals were rare and most of the early 6800 systems were connected to Teletype printers for a terminal.

Downloads

MP-C AssemblyInstructions.pdf  Original SWTPC MP-C instructions

MP-C_Schematic.pdf  Original SWTPC Schematic
