Peripheral Technology PT-B3R Motherboard for SWTPC 6809 System

HOME   SS50 Boards  Product Summary     Price List Hardware

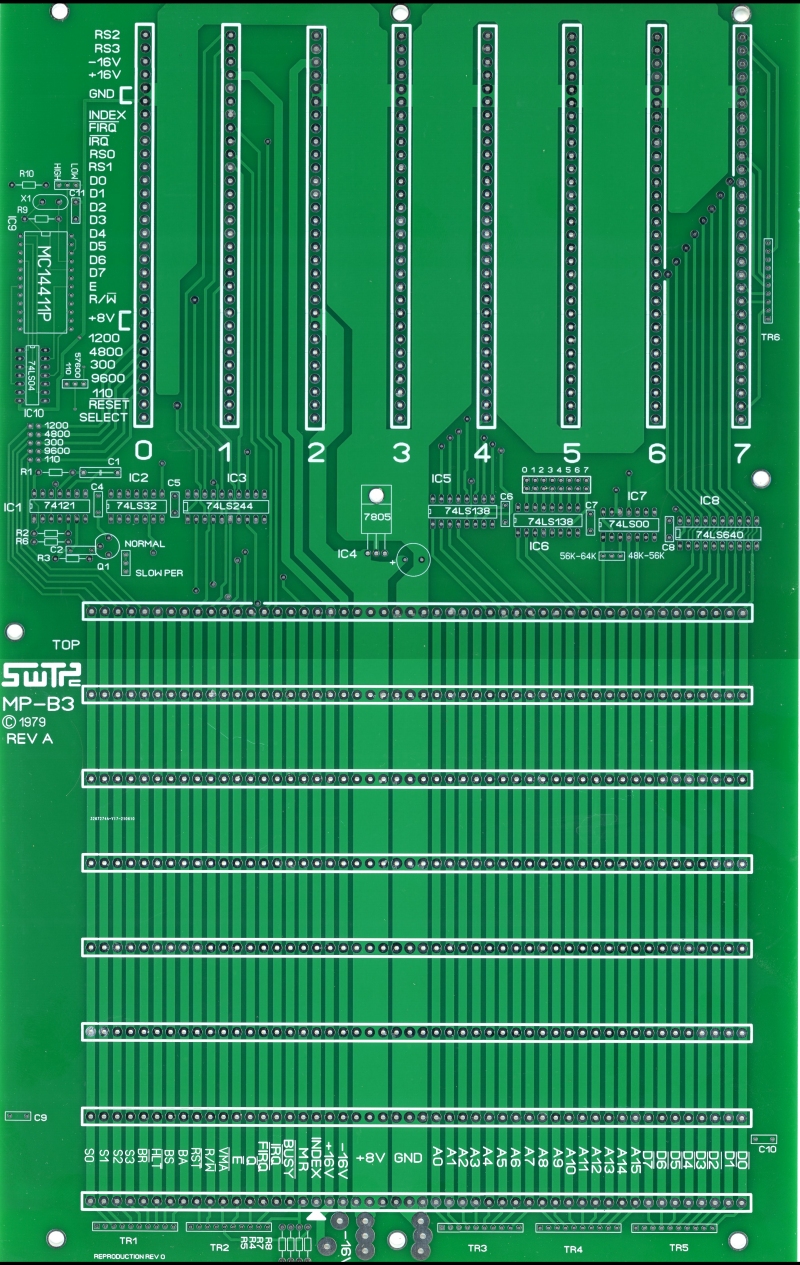

This is a reproduction motherboard for SWTPC MP-B3.

The PT-B3R is improved by having a baud rate generator on the motherboard.  Otherwise the circuitry is the same as the SWTPC MP-B3

PT-B3R has the same mounting holes as SWTPC MP-B3 and MP-MP Motherboard.

Fits  SWTPC  6809 cabinet with separate covers for each IO board.

Either the MB or CPU board can feed SS30 baud rate lines.  Selectable by shunts.

Can support S0-S3 for A16-A19 to support 1MB memory on SS50 BUS.

8 SS30 and 8 SS-50 slots.

Has same power connector as came with SWTPC MP-B3  motherboard.
