Features
· Compatible with VT-100
· SETUP utility on Ctrl+Alt+Del;
· Configurable UTF-8, ISO 8859 and IBM PC 437 support;
· Configurable VT-220 and PC/Sun keyboards compatibility;
· Blinking and inverted visual attributes;
· VGA output follows 25MHz pixel clock to get 640x480 resolution at 60Hz refresh rate;
· 8x16 characters and 24 or 30 lines screen buffers configurable in SETUP utility;
· Full range of baud rates from 110 up to 1,500,000;
· Scroll-lock and XON/XOFF flow control;
· Monochrome color is selectable with jumpers
· US, UK, DE, SE, FR and BE keyboard layouts are supported.
· Second RS-232 Port is RS232.
· Board uses MC68B50's - Works with 2MHZ systems

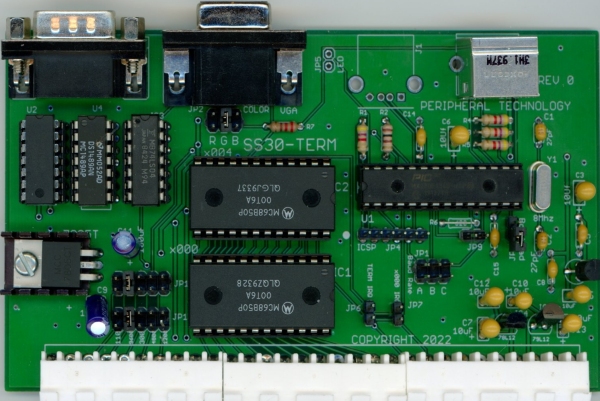

The SS30-TERM is a two port serial board. One port connects to a VGA monitor and PS/2 keyboard for input. The other serial port is RS232. Typically the addresses are $E004 for the VGA and $E000 for the RS232. FLEX and OS9 display with no driver changes since this board is like an MP-S serial board connected to a VT100 25x80 terminal. The 6850 at address $E004 feeds a PIC chip implementing a 25x80 character terminal with an 8x16 character font. The baud rates of the VGA terminal can be set from 110 to 1,500,000. However your limit will be set by available baud rates on your motherboard. The RS232 port on $E000 is connected to a DB9M connector.
This board requires a 16 address slot so it cannot be used in a 6800 computer. Even if the addressing of the board is corrected to occupy addresses $8004-$8007 it fails to function. SWTBUG incorrectly identifies this board as an MP-C (6821) and initializes it as such. Of course the board doesn't function after this. As a special order, a board can be modified to contain only one 6850 and to respond at address $8004-$8005 and work in a 4 addresses per IO slot. After the SS30-TERM is modified SWTBUG correctly initializes the board and treats it like an MP-S serial board rather than an MP-C.
For those building the bare board a PICKit3 programmer is needed to program the MX270F256B-I/SP. The software for the PICKit 3 is free but it can be difficult to setup, and no information on installing or using the PICKit is included in the user manual. If you have never used a PICKit 3 programmer or one of its later versions you should consider buying the assembled board. Your chances of installing the software, configuring the software, and having it work without many hours of trial and error is slim. For those of you with the skills the terminal software can be modified. Mike Evenson of the FLEX users group has firmware to change SS30-TERM to emulate a Televideo 950 instead of the standard VT100 emulation. His firmware can be downloaded from the FLEX users group FTP site.
Downloads
SS30-TERM User Manual.pdf SS30-TERM Users Manual
Firmware for SS30-TERM - Copy of firmware used to program the SS30-TERM - HEX file
| SS30-TERM-Bare | SS30-TERM Bare Board | $8 |
| MP-S-ASM | SS30-TERM Assembled | $45 |
| SS30-TERM-6800 | SS30-TERM modified for use with 6800 - No second RS232 port | $45 |
| PIC32-SS30-TERM | Programmed MX270F256B-I/SP | $14 |
