Reproduction Corsham SS30 Extender Board







Description

For those of you using the Corsham SS-50 motherboard and find yourself needing more I/O ports, this board will add an additional six SS–30 ports via a connector already on your motherboard.  This extender simply plugs in and you’ll have the full eight slots available for more I/O boards.  This motherboard has fixed slot addresses and cannot be changed like the two on the SS-50 Motherboard.  When using this extender you should set the slot address on your motherboard to 0 and 1.

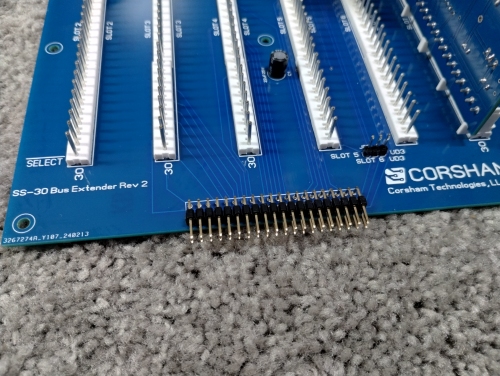

The extender plugs into the main motherboard using this connector:

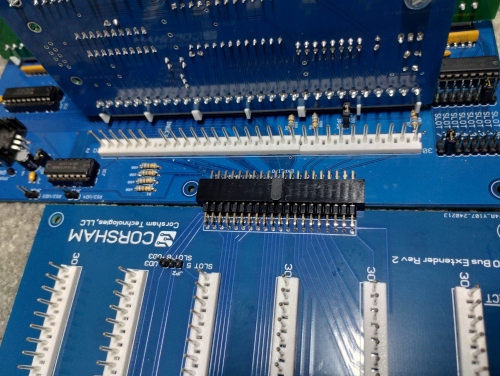

An example of the Extender plugged into the Main Motherboard

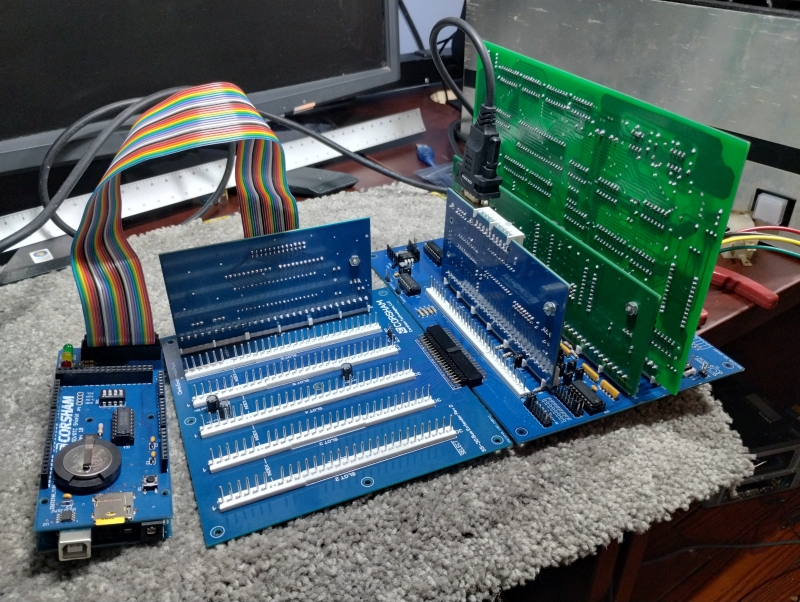

An example of a Motherboard with extender.  This system has a SWTPC reproduction MP-09B, PT-64K Memory board, Corsham Serial board and Corsham parallel board with SD card system.

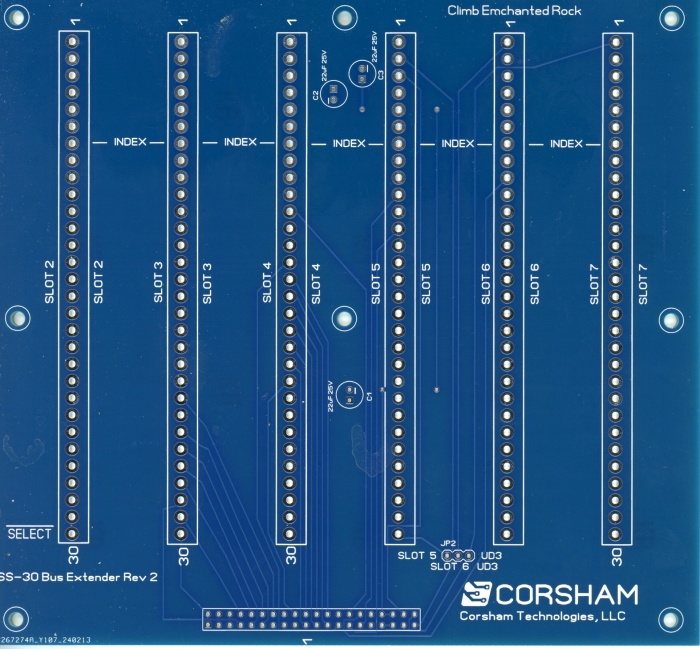

The SS30 extender is available as a bare board or assembled.

Downloads

There is currently no manual for this board.



Back to Top


Price List Hardware

C-SS30EXT-Bare Bare Board $18
C-MP-S-ASM Assembled SS30 Extender board $49
