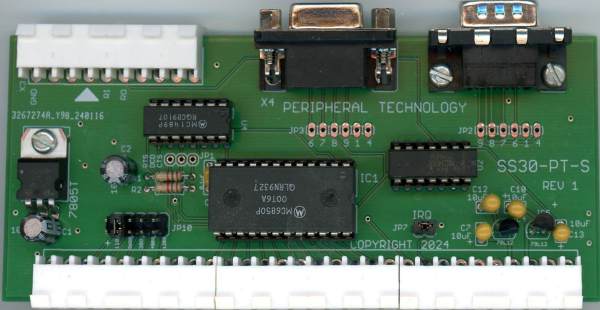

PT-S2 Serial board




This is a modern replacement for the SWTPC MP-S serial board.  It has DB-9F, DB9-M, and a Molex connector like SWTPC used on the MP-S.  Only one RS232 connector can be used at a time.  The multiple connector choices are to allow for maximum flexibility and ease of connecting an RS-232 cable between your computer and terminal.  The DB-9 connectors support USB to RS232 cables to allow a cable to plug between the PT-S and a USB port on your PC.  This board uses an MC68B50 to support 2MHZ operation.





Downloads

PT-S User Manual. PDF

Back to Top


Price List Hardware

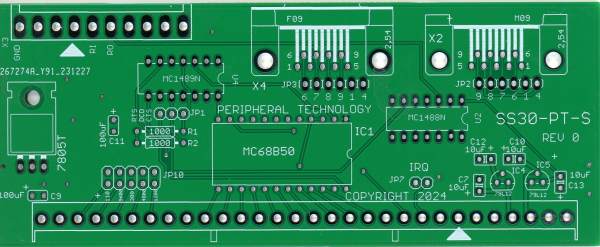

PT-S-Bare Bare Board $7
PT-S-ASM Tested and Assembled PT-S $35
