SWTPC MP-S Serial Interface for 6800/6809

HOME   SS50 Boards  Product Summary     Price List Hardware

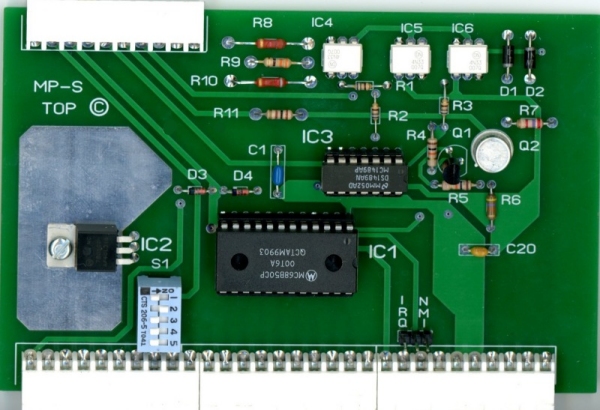

Reproduction of SWTPC MP-S Serial Interface for SWTPC 6800/6809 Computers

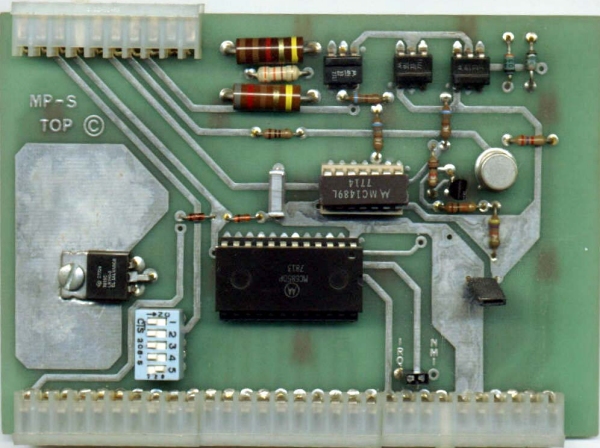

For comparison here is an original SWTPC MP-C board.

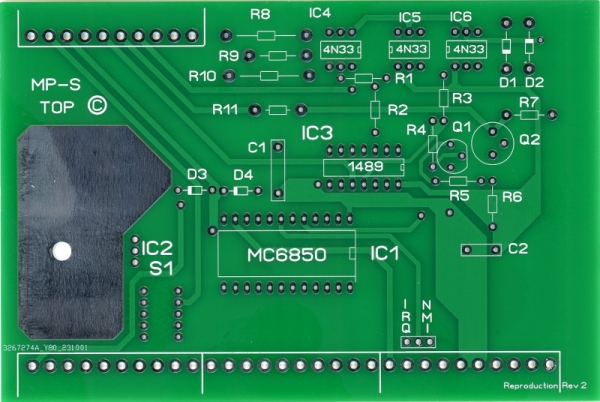

Differences between the Original and Reproduction

• Board is solder masked both sides.
• Board is silk-screened.
• The board has "Reproduction" silk-screened on the top side along the bottom edge of the board.

The MP-S includes circuitry to allow for use with a teletype. For most systems today this is not necessary and if you simply want a serial interface board we would recommend the PT-S serial board.    Assembled MP-S boards ship with an MC68B50 for use in 1MHZ or 2MHZ systems.

Downloads

MP-S AssemblyInstructions.pdf  Original SWTPC MP-S instructions

MP-S_Schematic.pdf  Original SWTPC Schematic
